Optimization on MOP with proxy solver

This example demonstrates how to create and execute optimization on MOP using ParametricDesignStudyManager

It creates multiple parametric systems using ProxySolver and Mopsolver nodes as solvers and then runs the created design study.

Perform required imports

Perform the required imports.

from math import sin
from pathlib import Path

import ansys.optislang.core.node_types as nt
from ansys.optislang.core.project_parametric import (
    Design,
    DesignVariable,
    ObjectiveCriterion,
    OptimizationParameter,
    Response,
)
from ansys.optislang.parametric.design_study import ParametricDesignStudyManager
from ansys.optislang.parametric.design_study_templates import (
    GeneralAlgorithmTemplate,
    OptimizationOnMOPTemplate,
    ProxySolverNodeSettings,
)

Create template inputs

Define template inputs, that are used by the parametric design study manager to create and execute the design study.

project_path = Path().cwd() / "design_manager_example.opf"
parameters = [
    OptimizationParameter(name=f"X{i}", reference_value=0.0, range=(-3.14, 3.14))
    for i in range(1, 6)
]
responses = [Response(name="Y", reference_value=0.0)]


def callback(designs: list[Design]) -> list[Design]:
    """Calculate coupled function for provided designs."""
    results_designs = []
    for design in designs:
        X1 = design.parameters[design.parameters_names.index("X1")].value
        X2 = design.parameters[design.parameters_names.index("X2")].value
        X3 = design.parameters[design.parameters_names.index("X3")].value
        X4 = design.parameters[design.parameters_names.index("X4")].value
        X5 = design.parameters[design.parameters_names.index("X5")].value

        Y = 0.5 * X1 + X2 + 0.5 * X1 * X2 + 5 * sin(X3) + 0.2 * X4 + 0.1 * X5
        id = design.id

        # create instance of design with new values
        output_design = Design(
            responses=[DesignVariable("Y", Y)],
            design_id=id,
        )
        results_designs.append(output_design)
    return results_designs


solver_settings = ProxySolverNodeSettings(callback=callback, multi_design_launch_num=-1)

Create AMOP template

Define template that will be transformed into an AMOP system with proxy solver.

amop_template = GeneralAlgorithmTemplate(
    parameters=parameters,
    criteria=[],
    responses=responses,
    algorithm_type=nt.AMOP,
    solver_type=nt.ProxySolver,
    solver_settings=solver_settings,
)

Create AMOP system

Instantiate parametric design study manager, create and execute the design study.

design_study_manager = ParametricDesignStudyManager(project_path=project_path)
study = design_study_manager.create_design_study(template=amop_template)
study.execute()
design_study_manager.save()

Create Optimization on MOP

Create optimization with MOP solver and validation system, execute. Database from the previous design study is used as an input for the MOP Solver.

criteria = [ObjectiveCriterion("minY", expression="Y")]
amop_system = study.managed_instances[0].instance

optimization_template = OptimizationOnMOPTemplate(
    parameters=parameters,
    criteria=criteria,
    responses=responses,
    mop_predecessor=amop_system,
    callback=callback,
)

optimization_study = design_study_manager.create_design_study(optimization_template)
optimization_study.execute()
design_study_manager.save()

Stop and cancel project

Stop and cancel the project.

design_study_manager.optislang.dispose()

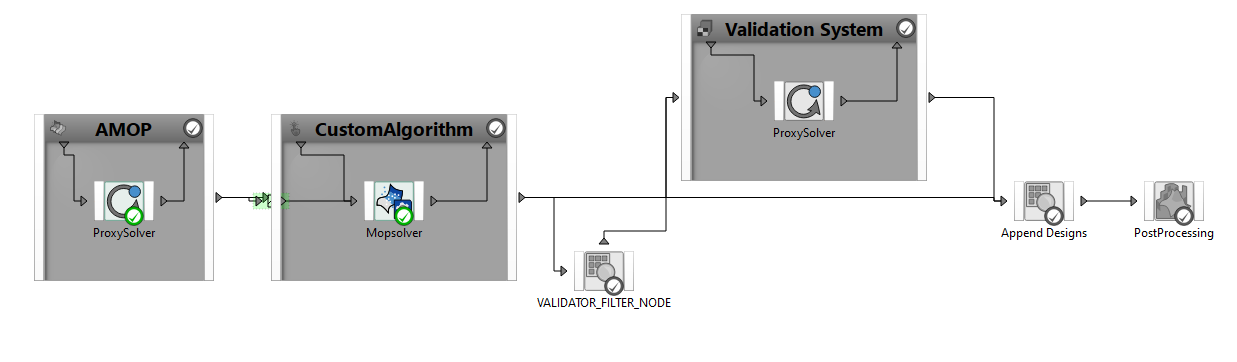

View generated workflow

This image shows the generated workflow.
